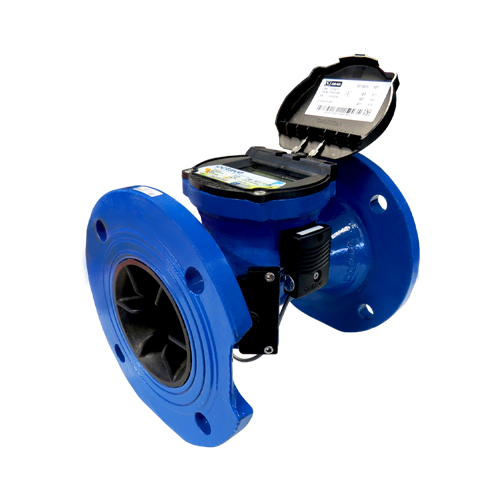

Octave Ultrasonic Industrial

Octave Ultrasonic Industrial 50mm – 300mm

The Octave Ultrasonic Meters are a revolutionary, precise and ultra-reliable ultrasonic bulk water meter with no moving parts. With superior hydraulics and batteries that last more than 15 years, the Octave is today’s best choice for bulk meters.

The Octave Range is NMI approved.

  • Dual beam ultrasonic technology for precise and ultra
    reliable metering
  • No moving parts
  • Excellent long-term stability and reliability
  • Battery powered – up to 15 years life expectancy
  • Rugged mechanical design – submersible (IP68)
  • Extremely sensitive and accurate in low flows
  • Bi-directional outputs (digital and analog)
  • Flexible data formats including flow directions, flow rates
    and volumes
  • AMR and cellular networks ready with alerts and
    statistics features
  • Multiline LCD
  • Programmable Display (units and outputs resolution)
  • EMI / RFI Protection
  • NMI approved to zero upstream and zero downstream straight length of pipe

WM500OCTSS

50mm Flanged Stainless Steel

WM500OCT-POLY

50mm Polymer Threaded*

WM800OCTSS

80mm Flanged Stainless Steel

WM1000OCTSS

100mm Flanged Stainless Steel

WM1500OCTSS

150mm Flanged Stainless Steel

WM2000OCT

200mm Flanged Cast Iron

WM2500OCT

250mm Flanged Cast Iron

WM3000OCT

300mm Flanged Cast Iron

* Threaded versions are provided with couplings.

Note:

  • All meters are ISO length
  • Option for Octaves with spool pieces to meet Australian length requirements are also available.

Polymer only

WMK26311
AS 3565.1

Stainless Steel and Cast Iron

Approved utility use only. No Watermark.

All types

NMI R49

WM2000OCT
WM500OCTSS

related products

Recycled Water Kits20200812124026

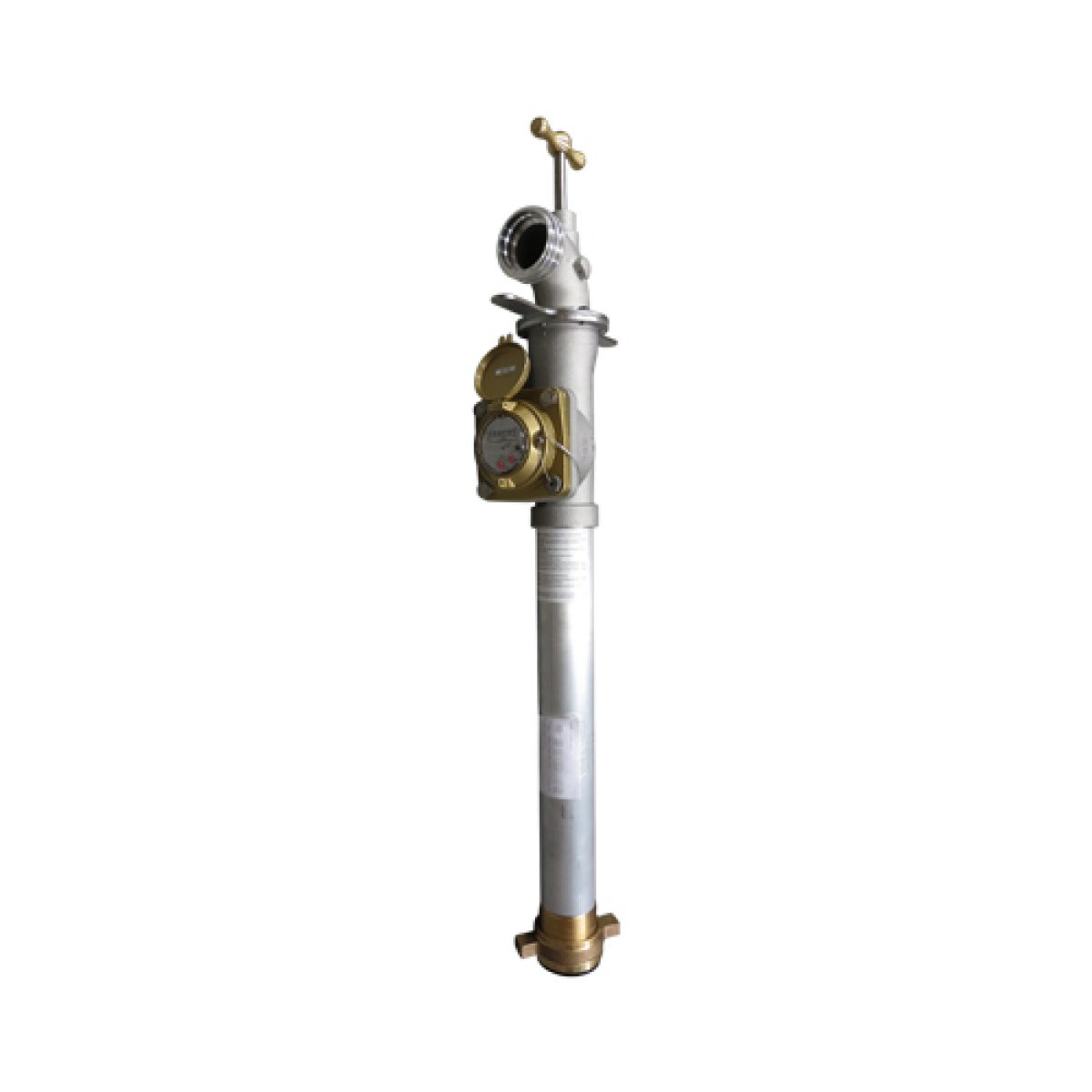

Standpipes20200812122130
